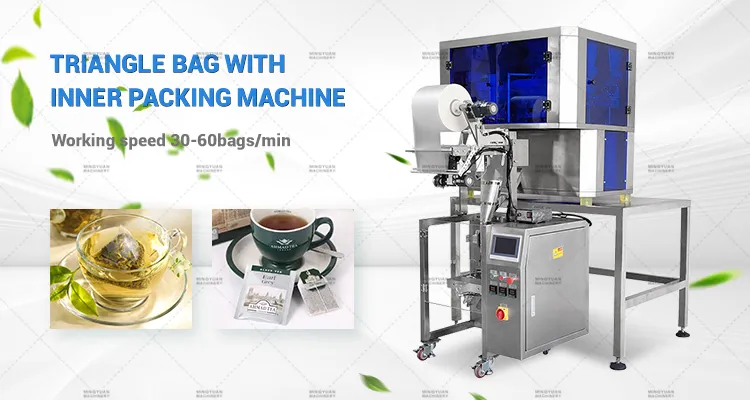

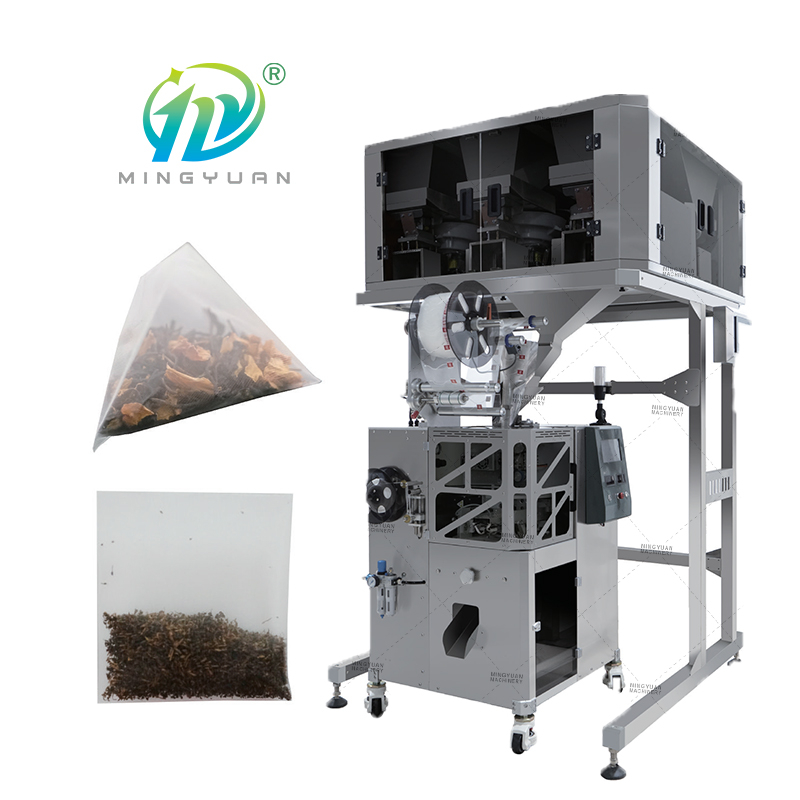

New Small Business Automatic triangle bag Packaging Machine for tea bag

Type:
MY-4K100
Packaging Range:
1-20g
Packaging Speed:
30-60 bags/min
Weight:
420kg
Availability:
Quantity:
Inquire Add to Basket
Automatic Tea Bag Packaging Machine triangle bag packing machine

  • MY-4K100

  • Mingyuan

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:

Product Category

Related Products

PRODUCT DESCRIPTION

8

We are leading manufacturer of tea bag packaging machines. Offering professional solutions for various single tea leaf, flower tea, fruit tea, herbs etc. for domestic and international clients. Designed to meet any production rates, package style and budget.

Our vibration scales are high precision for smaller weigher measuring,can pack all regular tea or those irregular shape
herbs, flowers. Also can blend and weight different tea material into one tea bag etc.
The automatic filling sealing system tomake it’s friendly for operation.Ultrasonic sealing system to make it’s healthier and more beautiful bag forming. Both inner andouter bag packing make production easier and higher effieciency.

Technical Parameter


Model

MY-4K100
Packaging Speed

30-60bags/min
Packaging Range

1-20g
Filling Type

Electronic Scale
Strengths

Can Pack 8 Kinds Of Materials At The Same Time
Feature

Automatic Tea Inner Bag Packing Machine
Machine Power

220v/50Hz/1.5kw
Inner Bag Packaging Material

Non-woven Fabric, Nylon Fabric, Corn Fiber
Inner Bag Size

120mm—180mm
Inner Bag Sealing Form

Triangular Bag, Flat Bag (One Key Switch)
Applicable packaging material

PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP, etc
Packaging error

±0.2g
Warranty

1 Year
Air consumption

0.3m3/min
machine weight

420kg
machine size

1040mm*1313mm*2432mm

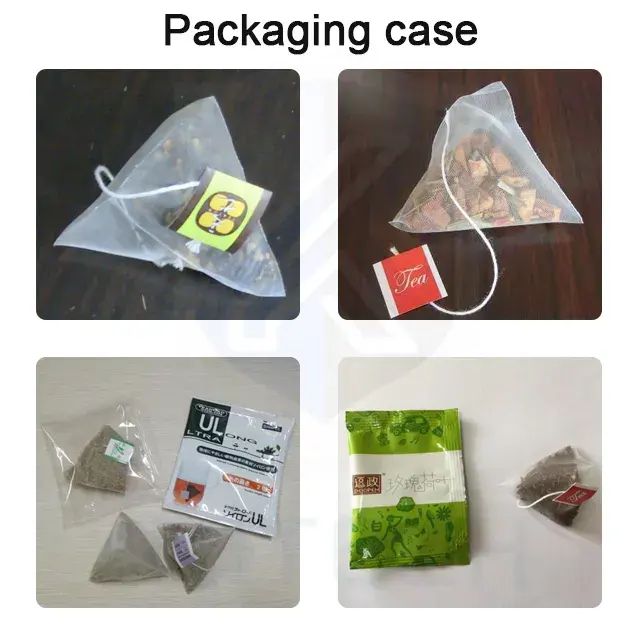

Sample display

lt is widely used in the packaging of all kinds of herbal tea，loose leaf tea，flower   tea，fruit tea and mixed tea。

21

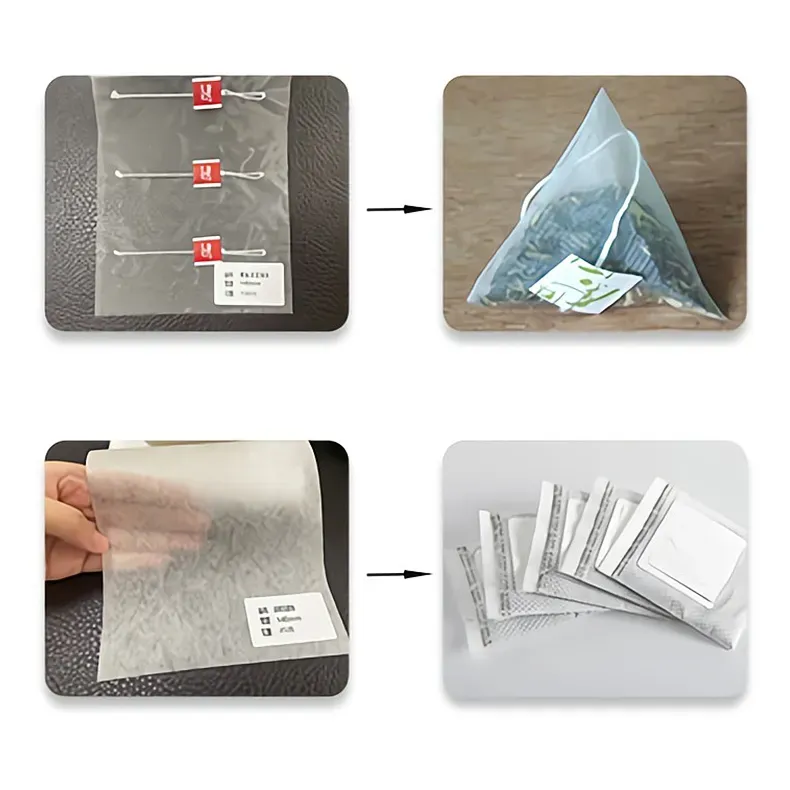

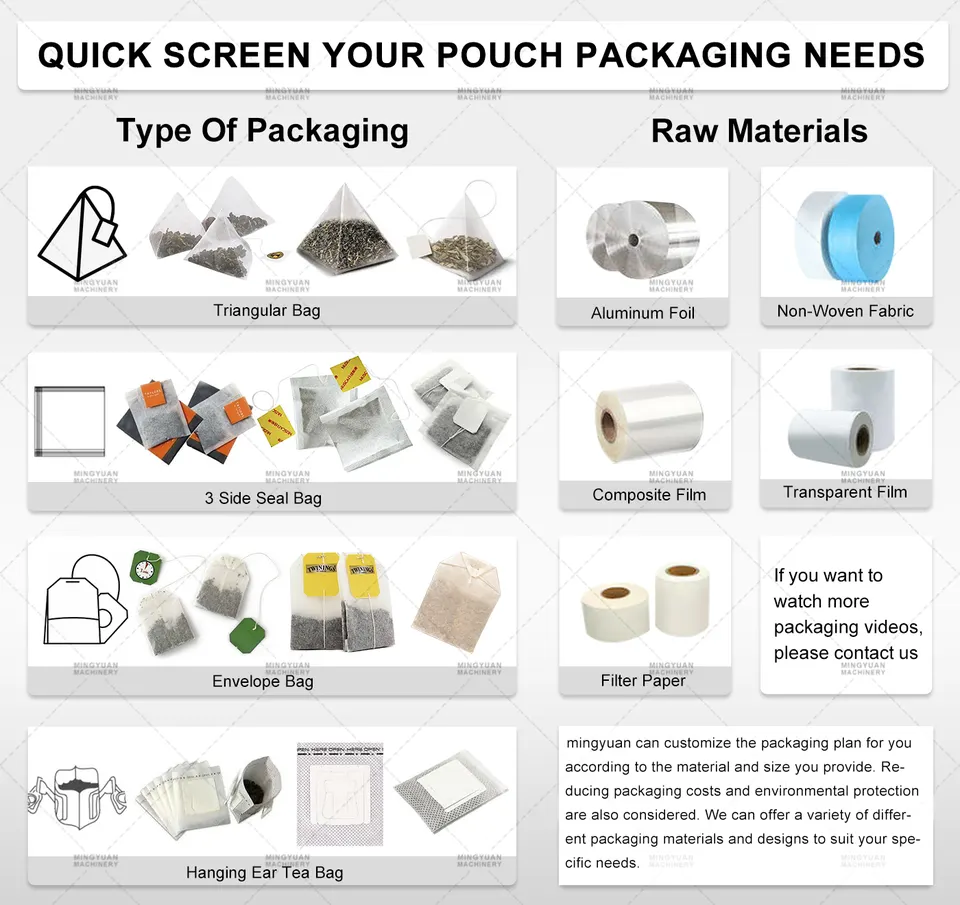

Bag Type
9

Ripple non-woven fabric

10

Corn fiber non-woven fabric

Contact me for more information on materials and types of packages

11

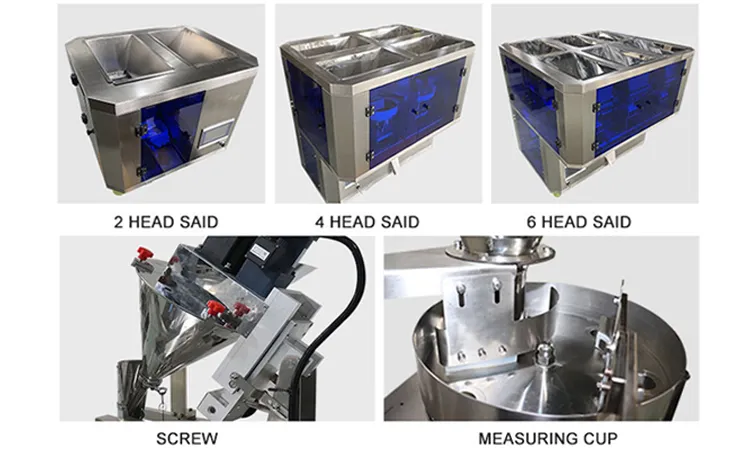

There’re different measuring devices for options depends on the products’ formula and speed requests.
For granules: 2heads/4heads/6heads/8heads/10 heads/12heads scales. (The more scales, the quicker speed, each scale’s capacityabout 10bags/min.) Please adopt Mingdian high speed pyramid tea bag packing machine if you request for more than 60bags/Min.
For powder: Screw measuring system, auger feeder.(Eg.: Dip coffee)

12

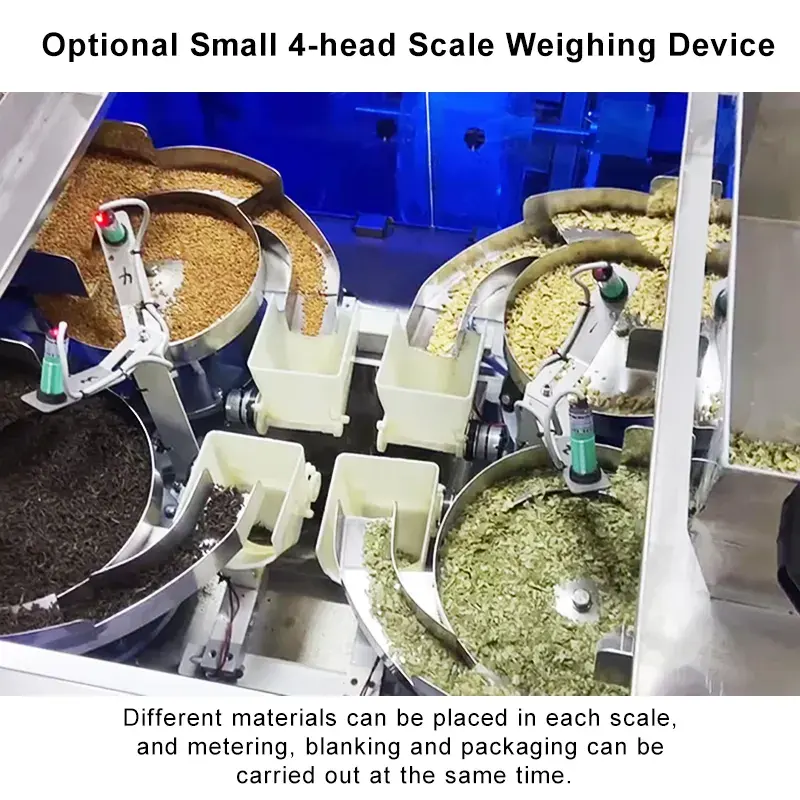

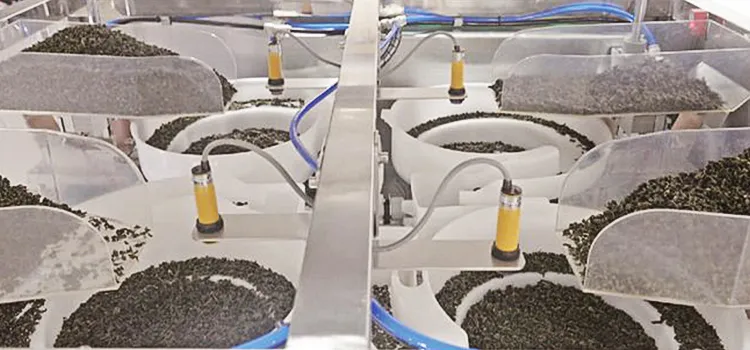

Electronic scale material statistics system // is suitable for single material, multi-material, irregular shape material and other materials that can not be measured by the general measuring cup

13

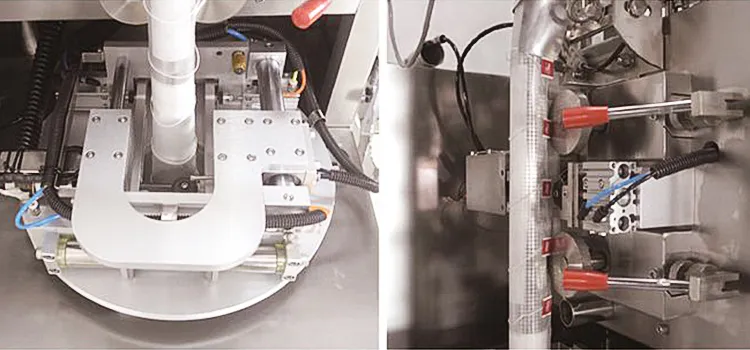

Ultrasonic sealing and cutting//sealing and cutting firm and reliable，beautiful bag shape

After Sales Service

8

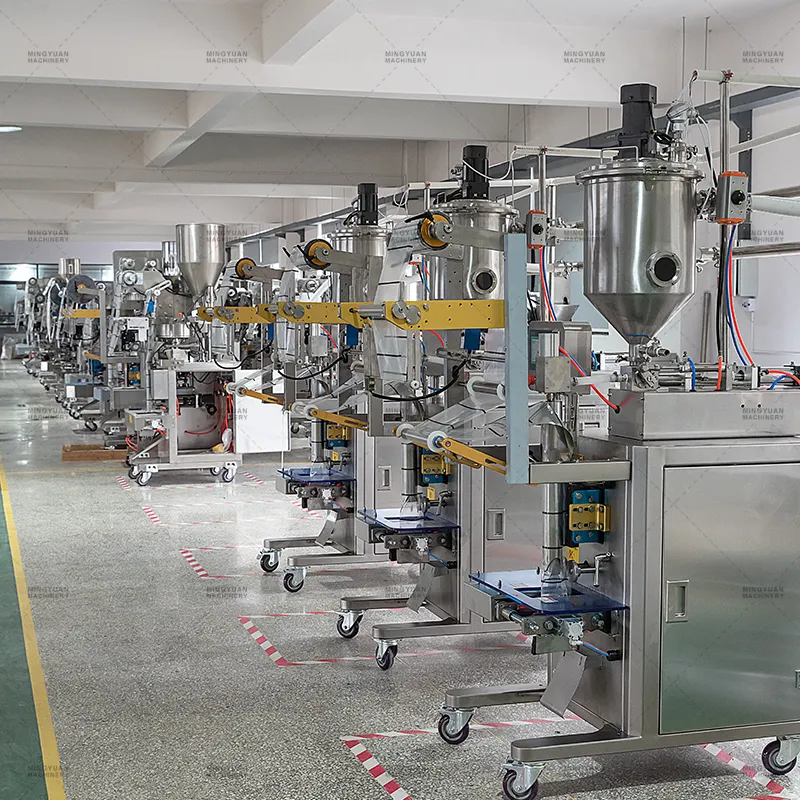

Company Profile

H99038a9727ad4c6e9271a594c01a1f27S

Hd23490c386a74b61a31e7519490f3b7bYHb7e43a37be6843e69a795b9d5a87b3b9o

H96afffd718aa4c57a70ac2ea26329058R

H7dadbec3ac6d4f2093bf51b2a0502e67i

Make sample bags

If it’s necessary according to your requirements, we can make sample bags for your reference.

Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.

Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.

Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.

Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
Remark
1. Ourcompany accept the payment of L/C,,T/T,e-checking, etc,confirm with our sales personnel finally please.
2. There may be chargewhen adding the additional configuration, please confirm with our sales personnel.
3. The packing machine final price need toconfirm with our sales personnel.
4. Our company reserve all the right for the final explanation.
