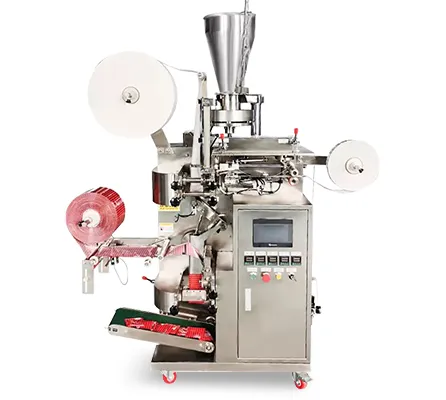

MY-4C100
Mingyuan
Technical Parameter
Model | MY-4C100 |
Working speed | 30-60bags/min |
Filling system | Volume Cup |
Bag size | Inner 50~70*40~80mm Outer bag: 85~120*70~95mm |
Bag type | 3-side sealing |
Sealing method | Heat sealing |
Air consumpion | ≥0.6Mpa 0.4m³/min |
Filling range | 2-15/bag |
Power | 220v single phase 50/60HZ |
Weight | 450kg |

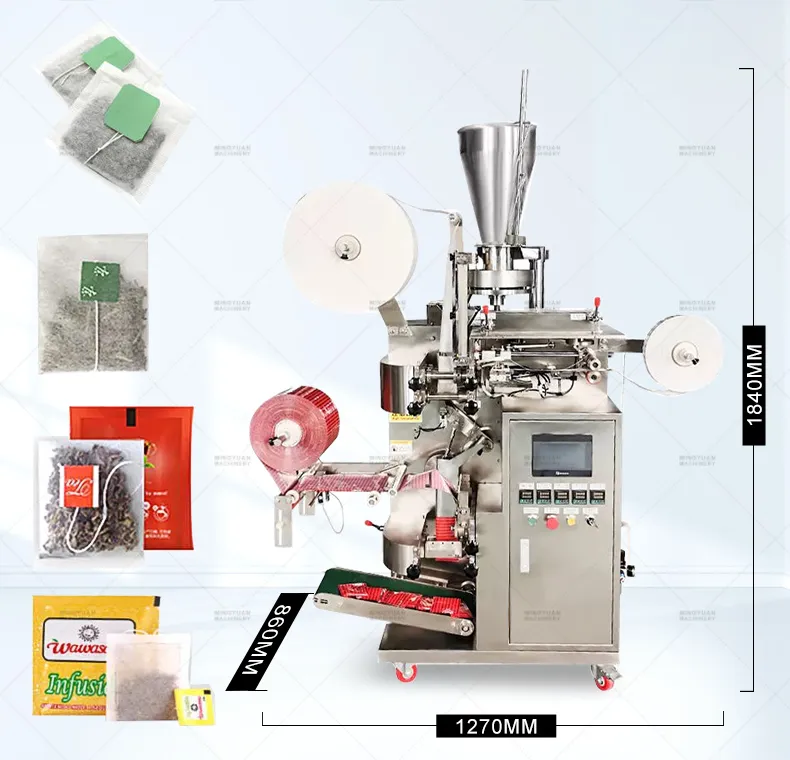

Overall Dimension | 1270*860*1840mm |
Packaging & deliver

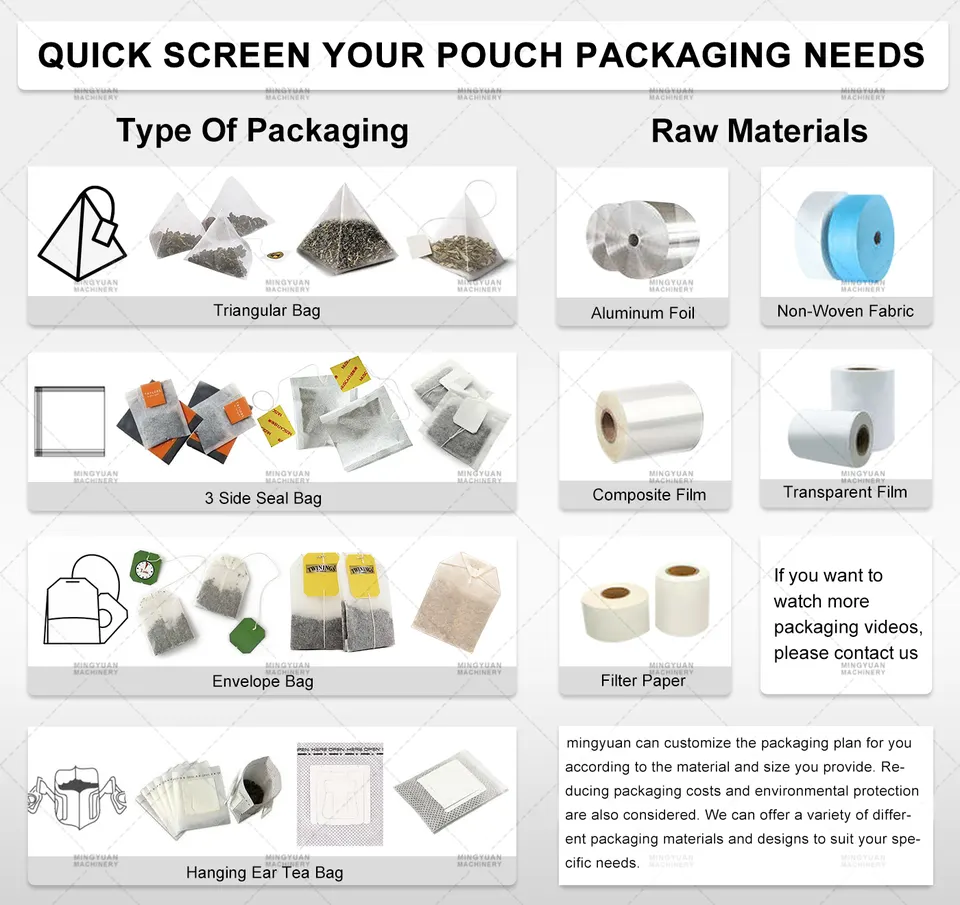

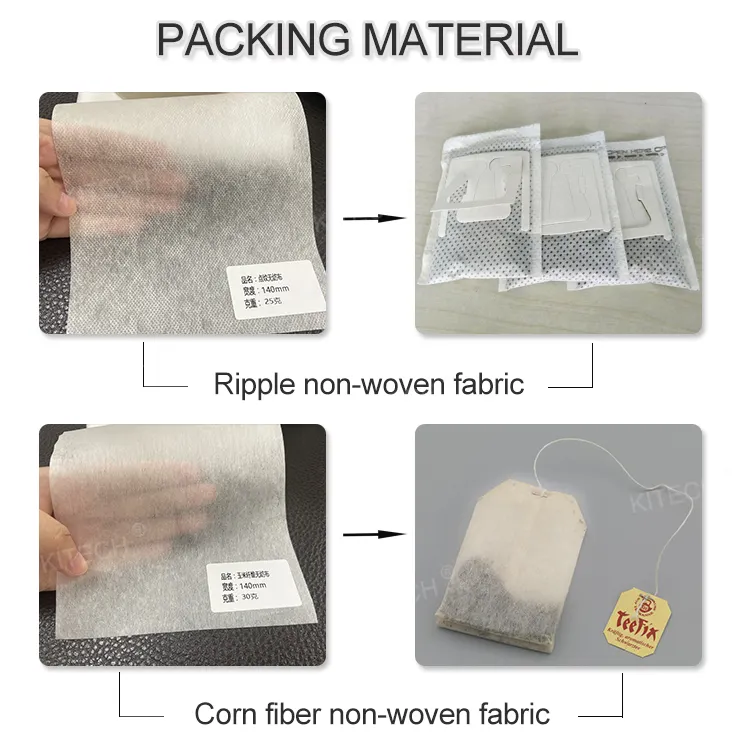

Contact me for more information on materials and types of packages

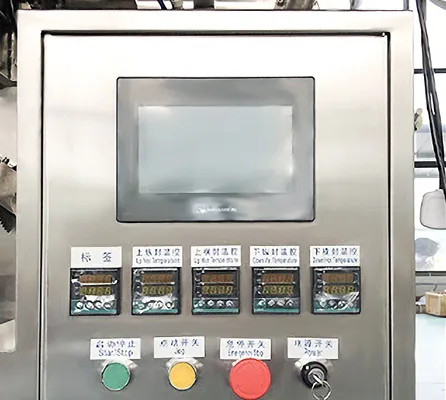

CONTROL SYSTEM

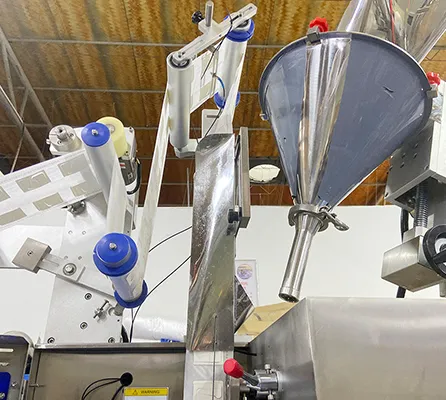

According to the packaging products to determine the metering device, powder with screw metering, granules with the amount of cupelectronic scale metering, a variety of metering device matching, to highlight the professional production process of the factory, while ensuring that the customer metering high precision requirements.

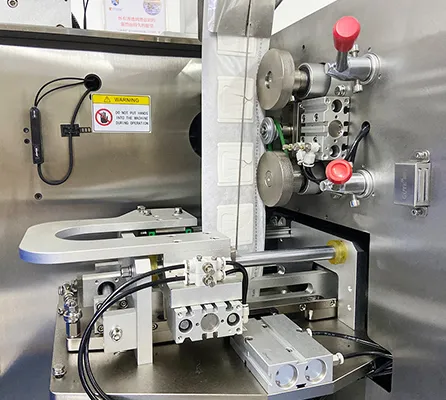

Ultrasonic sealing

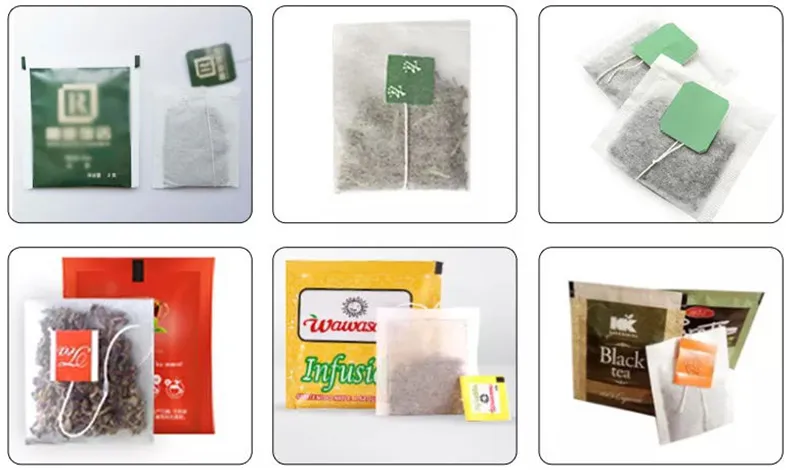

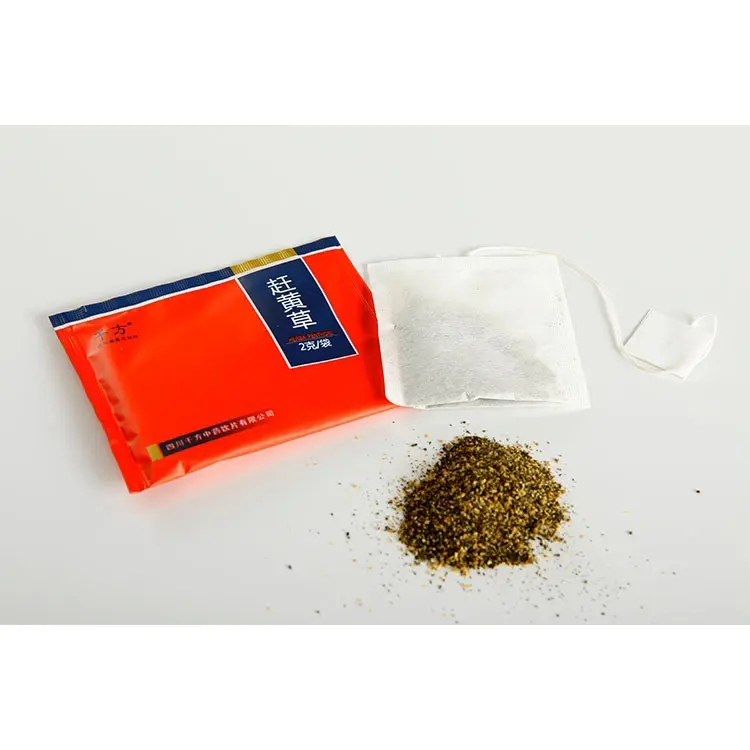

Inner and outer bag integrated packaging
One machine can package both inner and outer bags at the same time, with small footprint, high precision, faster speed and labor cost saving.
