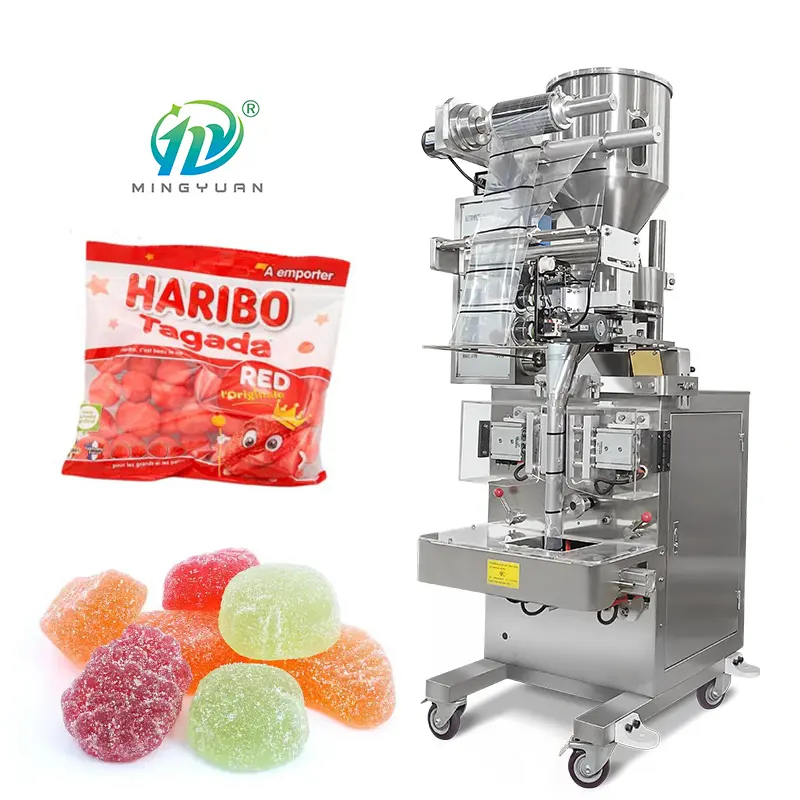

Multi-function Packaging Machines Automatic filling candy Granule packing machine


Type:	MY-K100
Bag length:	50-150mm
Bag width:	25-120mm
Packing speed:	30-50 packets/min
Availability:

Quantity:



Inquire Add to Basket

Multi-function Packaging Machines Automatic small Pouch chips Snack cashew nut Granule Packing Machine

Model:
MY-K100
Brand:
Mingyuan

Related Products

Filling Machine Multi Function Automatic French Fries Snacks Potato Chips Packing Machine

PRODUCT DESCRIPTION

Technical Parameter

model	K100	K300
Bag length	50-150mm	50-300mm
Bag width	25-120mm	70-190mm
Width of film	50-260mm	140-400mm
Capacity of bag	5-100ml	100-1000ml
Packing speed	30-50 packets/min	20-40 packets/min
power	220v/AC 50Hz 1.6Kw	220v/AC 50Hz 1.8Kw

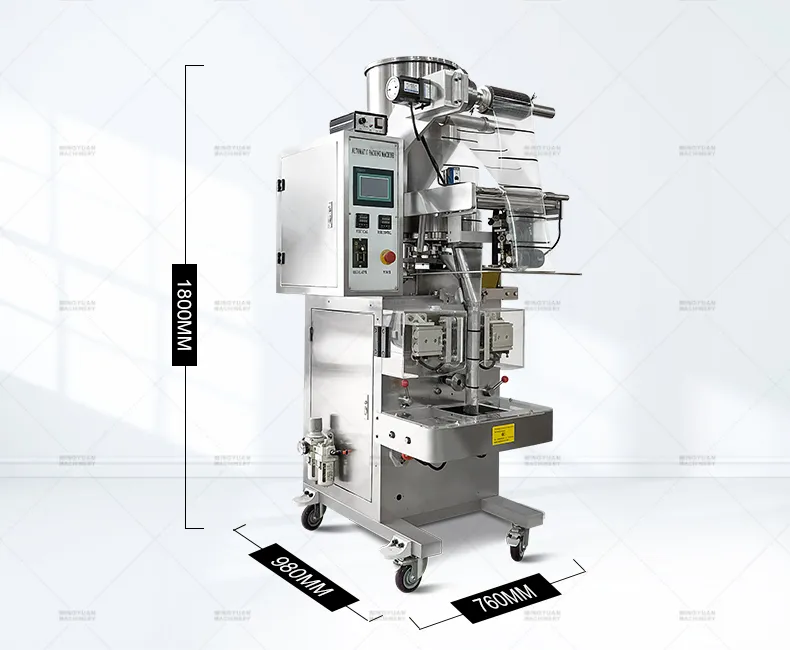

machine size	7609801800mm	90011202360mm
Machine weight	300kg	480kg
Sealing type	Three side seal, four side seal, back seal
Air source	0.65Mpa，100L/min

Packaging & deliver

Sample display

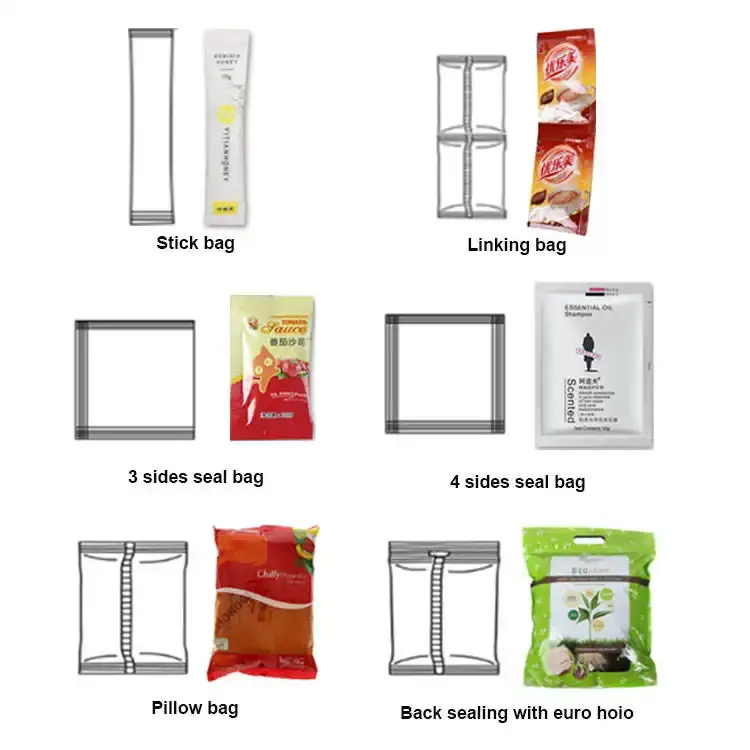

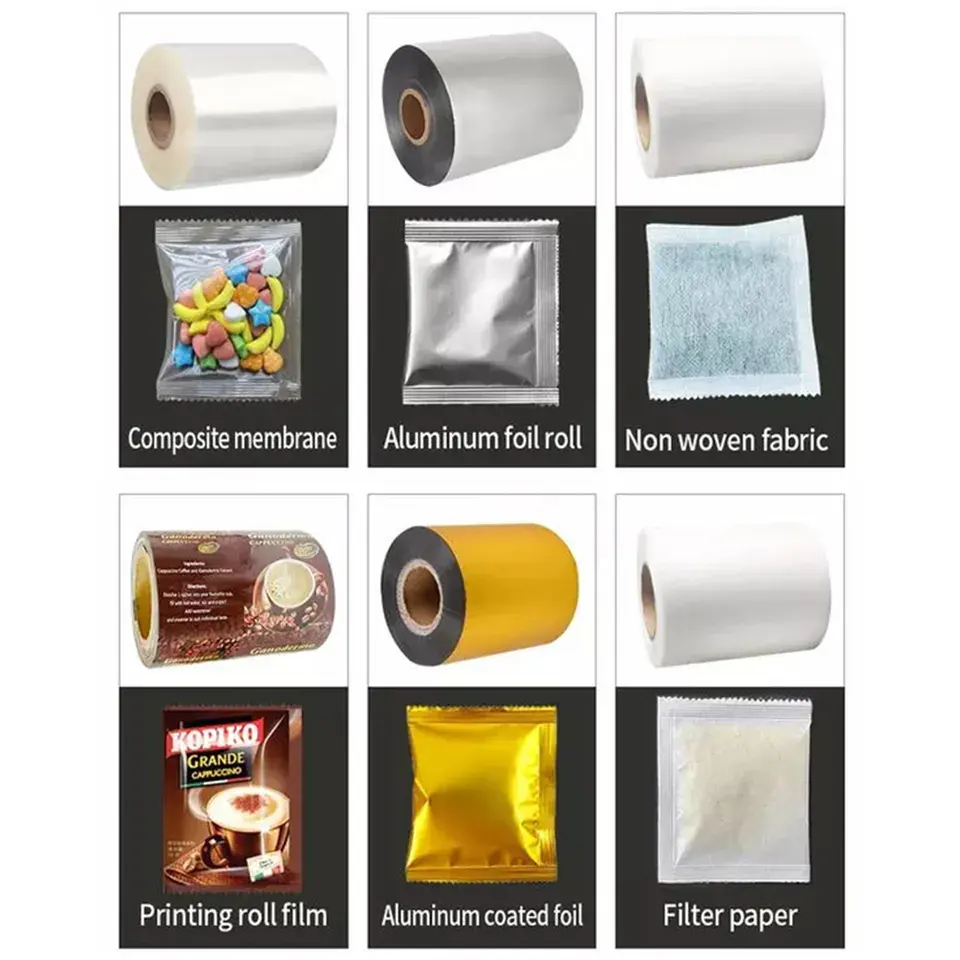

Bag shaped display

Selling Point of a Product

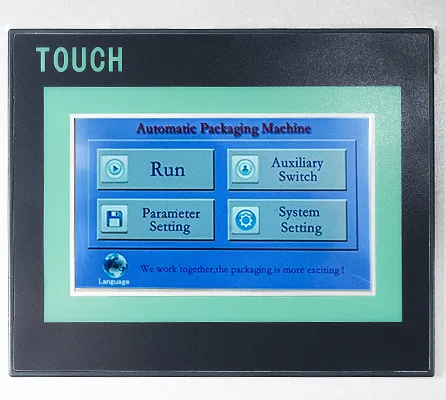

Touch Screen

 PLC controller and colour touch screen，all parameters can be set on the control panel，easy to operate，language switchable

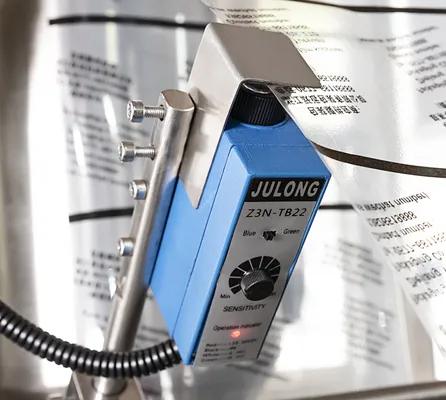

Cursor Positioning

 Automatic positioning of product packaging printing

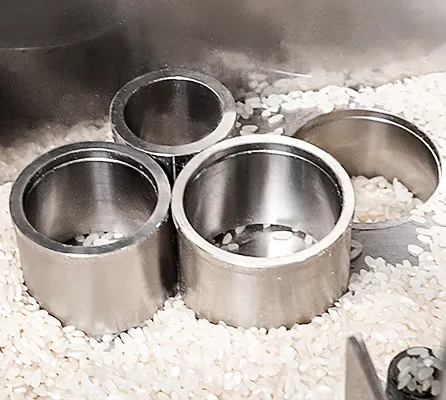

Volumetric Cup System

 Adjustable volumetric cup measuring system with high weighing accuracy

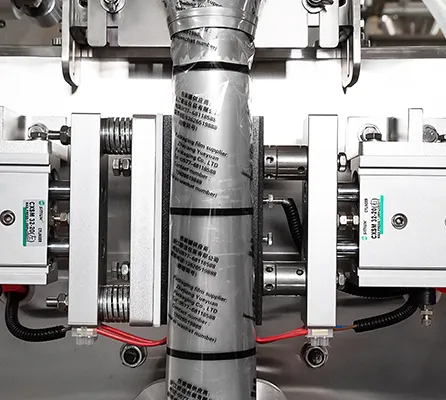

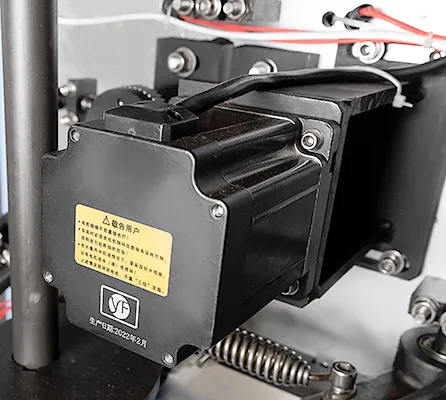

Sealing Cutting Motor

 Mechanical cam with single shaft control the heating sealing and cutting device to ensure the tightness

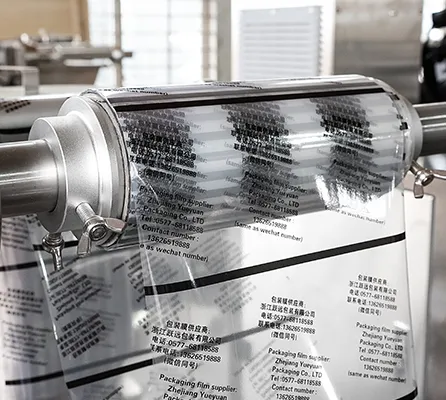

FILM RELEASING MECHANISM

 Consists of multiple film-penetrating shafts，the film is pulled more smoothly and stably，and the bag is smoother and more beautiful

HEATER

 Intelligent PID Cconstant temperature heat sealing beautiful shape and beautiful bag shape.

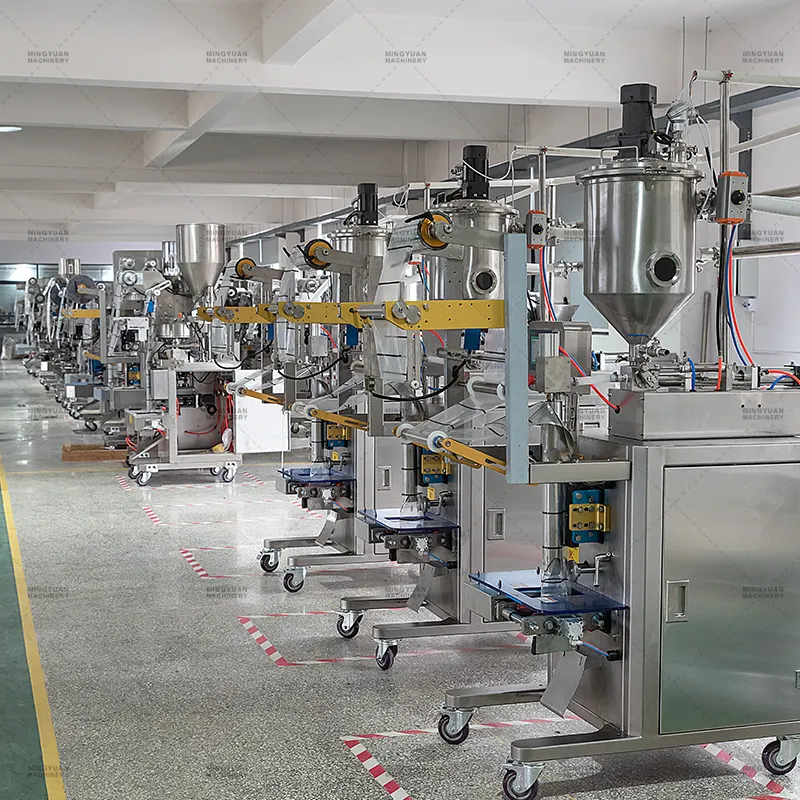

Company Strength

Hb7e43a37be6843e69a795b9d5a87b3b9o

H96afffd718aa4c57a70ac2ea26329058R

H7dadbec3ac6d4f2093bf51b2a0502e67i

Make sample bags

 If it’s necessary according to your requirements, we can make sample bags for your reference.


 Free machine adjustment before shipment


 Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.


 Free Training CD to ship with machine


 Our technical team will provide a trainning CD to our customer in order to train how to use the machine.


 Life Long after sale service


 Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.


 Warranty and after-sales service


 One year warranty, 24 hours online technical service and solution can be offered.


 Remark


 1. Our company accept the payment of L/C,,T/T,e-checking, etc,confirm with our sales personnel finally please.

 2. There may becharge when adding the additional configuration, please confirm with our sales personnel.

 3. The packing machine final price need to confirm with our sales personnel.

 4. Our company reserve all the right for the final explanation. Send your message to this supplier
