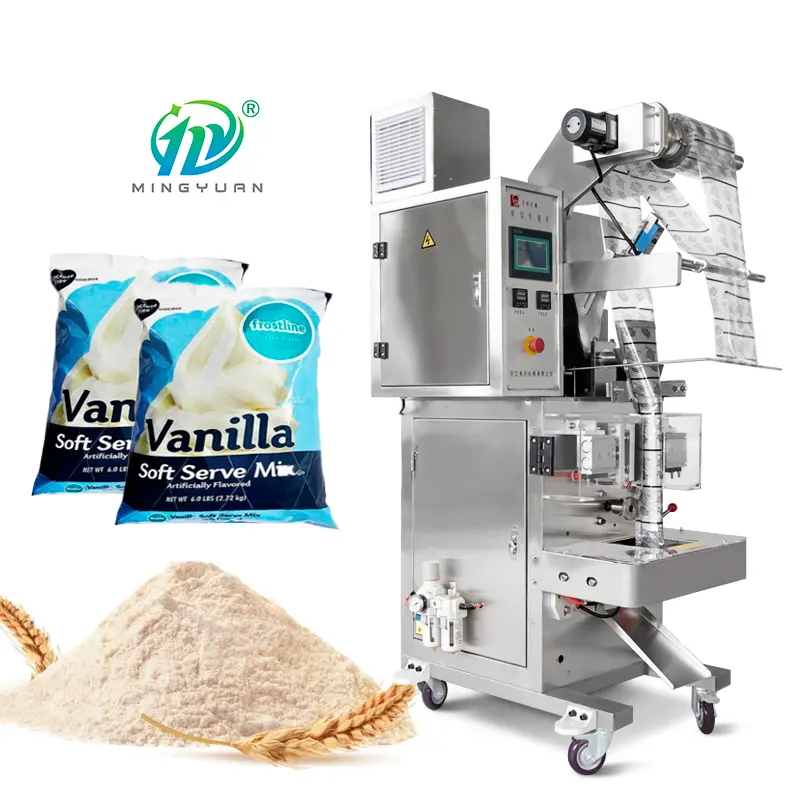

Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine

loading

Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine
Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine
Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine
Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine
Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine
Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine

loading

Automatic High Speed Small Vertical Pouch Ice Cream Powder Packing Machine

Type:
MY-FBQ100
Bag capacity:
5-100ml
Packing speed:
30-50bags/min
Weight:
380kg
Availability:
Quantity:
Inquire Add to Basket
Automatic coffee powder packaging machine ；milk powder Packing Machine washing powder Packing Machine

  • MY-FBQ100

  • Mingyuan

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Previous:
Next:

Product Category

Related Products

PRODUCT DESCRIPTION

 21

Technical Parameter

Model MY-FBQ100
Bag Making Length 50-150mm
Bag Making Width 25-120mm
Packing Film Width 60-240mm
Packing Capacity 5-100ml
Packing speed 30-50bags/min
Power 220V/50hz 2.6KW

Overall Dimension

 760*980*1700mm
Weight

380kg
The Sealing Form Three side seal, four side seal, back seal
Form Of Measurement Screw metering
Packing Material Multilayer composite film, polyester/PE, polyester/aluminum foil/PE, polyester/aluminized/PE, paper/PE
Suitable For The Material Food, medicine, chemical, daily chemical industry and other powdery materials


Packaging & deliver

Sample display

3

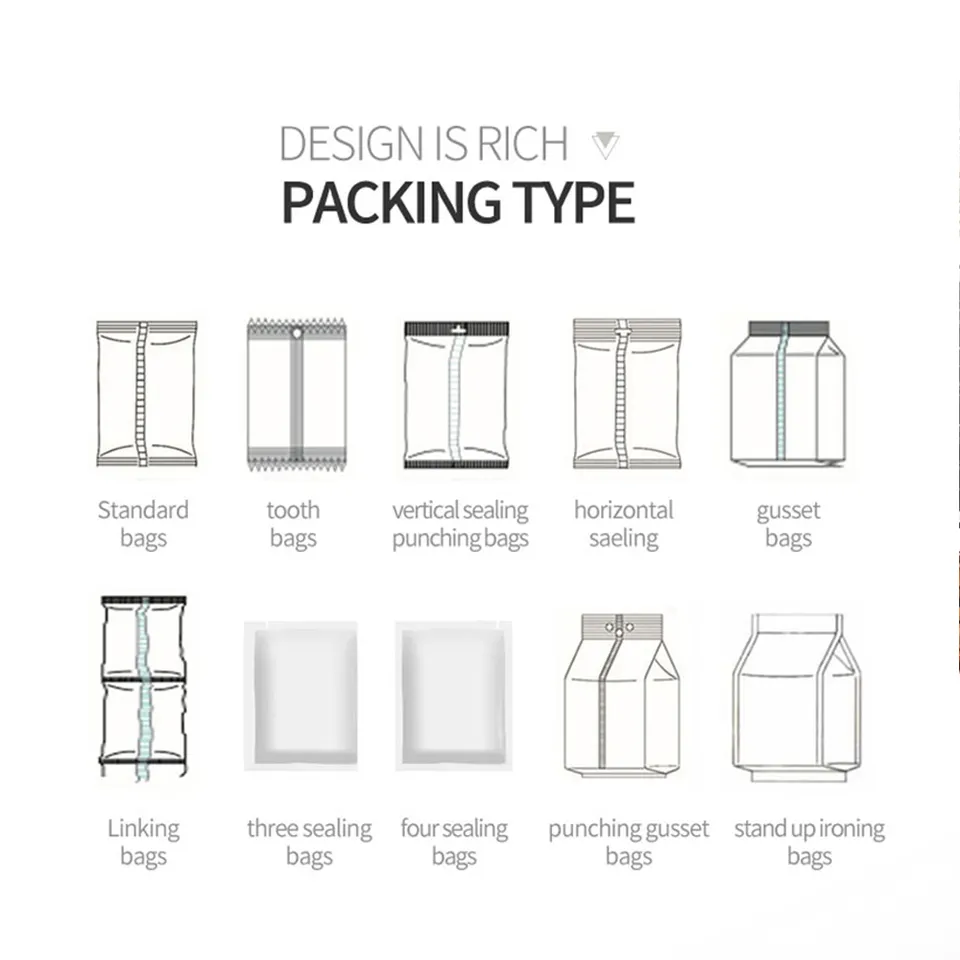

Bag shaped display

31

Selling Point of a Product
32

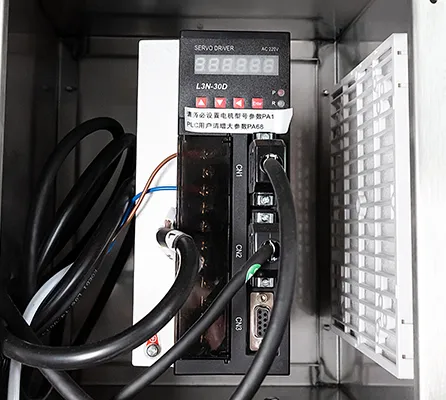

Servo Driver

servo motor control, with simple operation and accurate running.

33

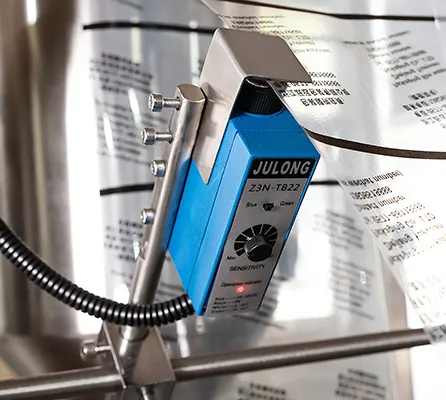

Intelligent photoelectric control device

Color photoelectric sensor  position  and pack accurately to ensure bag pattern integrity. With intelligent photoelectric control device , ensure the perfect shape of the packaging bag.

34

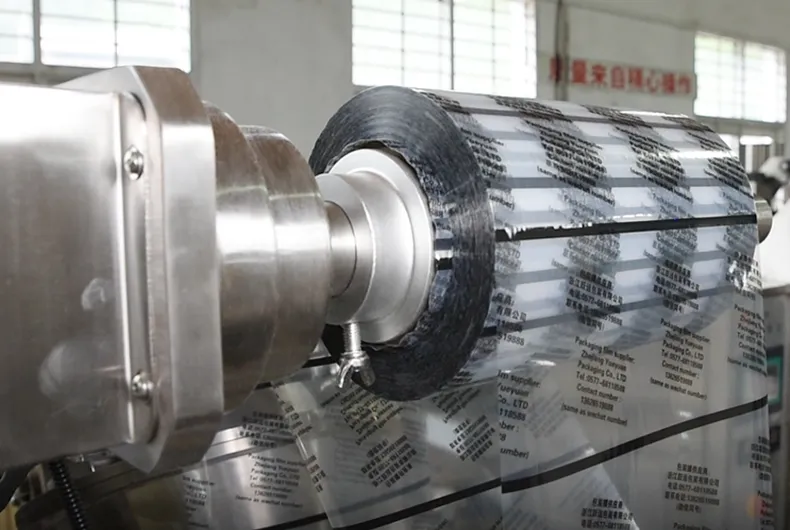

Roll Film holder
Consists of multiple film-penetrating shafts, the film is pulled more smoothly and stably, and the bag is smoother and more beautiful




35

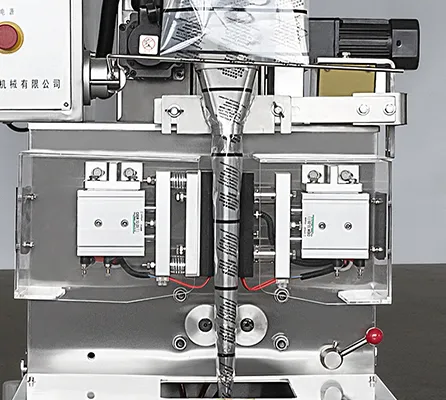

Verical Sealing System

lntelligent PlD constant temperature heating and sealing， make the beautiful bag shape.
36

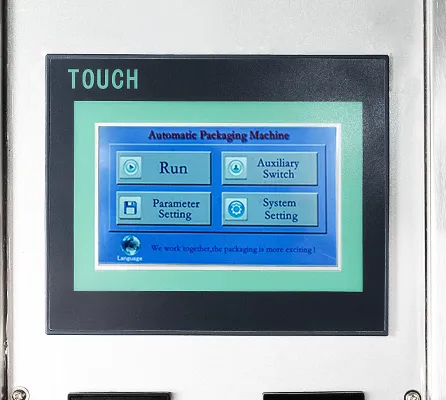

Easy Control Touch Screen

lt adopts PLC Controller and colourful touch screen，all the working parameters can be setup on the control panel，which is easy to operate.
37

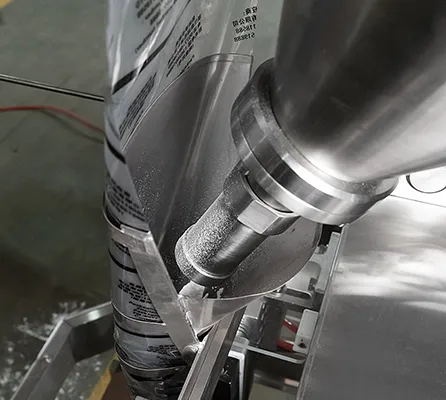

Screw Meterling Feeder

Driven by the servo motor，control the number of screw revolutions，improve the accuracy of the same amount of feeding.
38

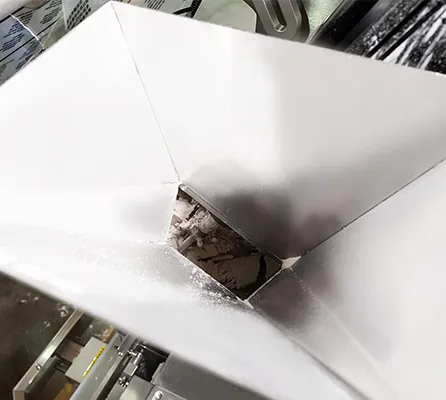

Large Capacity Hopper

304 stainless steel is used for the whole contact material parts，which conforms to the food and drug hygiene licensing standards.
39

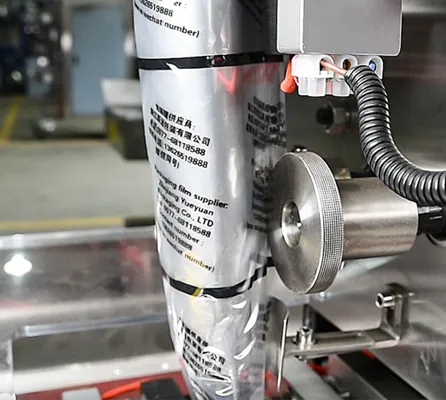

Pulling Wheels

Pulling the film smoothly.
40

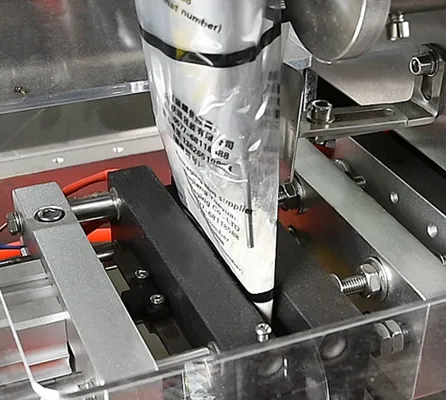

Horizontal Sealing and Cutting System

Sophisticated cutting structure with independent temperature system for bag sealing and cutting achieve the consistency of bag sealing and cutting

7

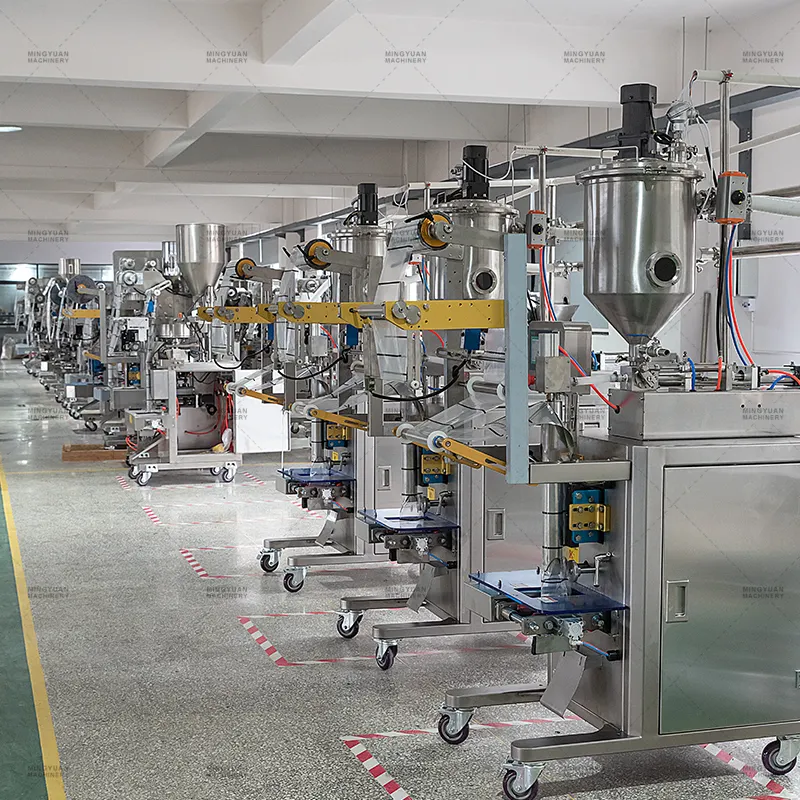

Company Strength

8

9

10Hb7e43a37be6843e69a795b9d5a87b3b9o

H96afffd718aa4c57a70ac2ea26329058R

H7dadbec3ac6d4f2093bf51b2a0502e67i

Make sample bags

If it’s necessary according to your requirements, we can make sample bags for your reference.

Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.

Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.

Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.

Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.

Remark
1. Our company accept the payment of L/C,,T/T,e-checking, etc,confirm with our sales personnel finally please.
2. There may becharge when adding the additional configuration, please confirm with our sales personnel.
3. The packing machine final price need to confirm with our sales personnel.
4. Our company reserve all the right for the final explanation. Send your message to this supplier
